The Apex of Annihilation: 5 Most Devastating Medieval Siege Engines

The Middle Ages, often romanticized as an era of chivalry and grand castles, was also a period of brutal warfare. As fortifications grew ever more formidable, so too did the ingenuity of those seeking to breach them. Siege warfare became a complex art, requiring not just courage, but also sophisticated engineering and strategic thinking. At the heart of these epic confrontations stood the siege engines – fearsome machines designed to crumble stone walls, shatter morale, and ultimately, determine the fate of cities and kingdoms.

This article delves deep into the five most devastating medieval siege engines, exploring their design, operational mechanics, tactical deployment, and profound impact on the landscape of medieval warfare. From the ultimate projectile launcher to the silent, unseen destroyer, these machines revolutionized the way battles were fought and fortifications were built.

1. The Trebuchet: King of the Siege Battlefield

The Reign of the Trebuchet: Unrivaled Power and Precision

The trebuchet stands as the undisputed king of medieval siege weaponry, a testament to medieval engineering brilliance. While earlier forms of artillery relied on torsion (twisted ropes) or human traction, the counterweight trebuchet, which became dominant in Europe from the 12th century onwards, harnessed the fundamental force of gravity to launch projectiles with unprecedented power, range, and accuracy. Its impact on medieval warfare was transformative, rendering many existing castle designs vulnerable and forcing innovations in defensive architecture.

Engineering a Colossus: Design and Mechanics

At its core, a trebuchet operates on the principle of leverage, utilizing a massive counterweight to generate immense kinetic energy. The typical design features a long, asymmetrical throwing arm pivoted on a tall frame. On one end of this arm, a heavy counterweight (often a wooden box filled with earth, stones, or lead) is attached. The other, longer end of the arm holds a sling, into which the projectile is loaded.

To prepare for firing, the long arm is pulled down, lifting the heavy counterweight. This process, often requiring dozens or even hundreds of men pulling ropes or turning large winches, stores potential energy in the system. Once loaded and aimed, a quick-release mechanism is triggered. The heavy counterweight, rapidly descending under gravity, causes the long end of the arm to whip upwards with tremendous speed. As the arm reaches the vertical position, the projectile-holding sling releases its cargo, launching it in a high, arcing trajectory towards the target. The length of the sling itself contributed significantly to the projectile’s velocity and range, acting as an extension of the throwing arm.

The sheer scale of these machines was awe-inspiring. Some of the largest trebuchets, like “Warwolf” employed by Edward I at the Siege of Stirling Castle in 1304, were colossal structures, capable of launching stones weighing hundreds of kilograms, sometimes even over a ton, distances of 200-300 meters or more. These projectiles were not just solid stone; they could be firepots filled with incendiary materials, diseased animal carcasses intended to spread contagion and terror, or even the severed heads of enemies as a grotesque psychological weapon.

Strategic Deployment and Tactical Impact

The trebuchet’s strategic value was multi-faceted. Its primary role was to breach castle walls and fortifications. Unlike earlier catapults, which often struggled against thick stone, the sustained impact of massive trebuchet projectiles could gradually weaken and eventually crumble sections of even the most robust curtain walls. A breach would then allow attacking infantry to storm the fortress.

Beyond direct demolition, trebuchets were psychological weapons. The sheer size of the projectiles and the thudding impact against stone walls were demoralizing to defenders. The ability to launch objects over walls also allowed besiegers to bombard the inner courtyards, barracks, and keeps, denying defenders safe havens and disrupting their operations. This “indirect fire” capability meant that defenders could not simply hide behind their battlements; nowhere within the castle walls was truly safe.

Furthermore, trebuchets were often used in counter-battery fire, targeting enemy siege engines or defensive artillery. Their superior range and accuracy gave the attacking force an advantage in artillery duels. The construction of a trebuchet was a significant undertaking, requiring vast amounts of timber, skilled carpenters, and considerable time – often weeks or even months. This meant their deployment signaled a serious, long-term commitment to a siege. Once assembled, however, they were highly effective and could operate continuously, delivering a relentless barrage until the objective was achieved or the siege abandoned.

The trebuchet’s reign ultimately faded with the widespread adoption of gunpowder artillery in the late Middle Ages and early Renaissance. Cannons, with their even greater destructive power and ease of transport, eventually rendered the trebuchet obsolete. However, its legacy as the pinnacle of mechanical siege warfare remains firmly etched in history. It represents a fascinating intersection of medieval science, engineering, and the brutal realities of war.

2. The Siege Tower: Bringing the Battle to the Battlements

The Mobile Fortress: Scaling the Unscalable

The siege tower, or “belfry” as it was sometimes known, was a colossal, mobile structure designed to negate the primary defensive advantage of a castle: its height. These wooden behemoths allowed attackers to bring their fighting forces directly to the level of the castle battlements, bypassing the perilous and often suicidal task of scaling walls with ladders under a hail of projectiles. It was, in essence, a mobile fortress, offering protection and a direct assault route.

Engineering a Colossus: Design and Mechanics

A typical medieval siege tower was a multi-storied wooden structure, often rectangular in shape and mounted on sturdy wheels or rollers. Its height was carefully calculated to be equal to or slightly taller than the wall it was intended to assault, allowing a drawbridge or gangplank to be lowered directly onto the enemy’s ramparts. The sides of the tower were heavily reinforced with hides, planks, or even metal sheets to protect the occupants from arrows, crossbow bolts, and even fire. To combat incendiary attacks, the wood might be soaked in vinegar or covered with animal hides.

Inside, the tower was a hive of activity. Multiple levels were connected by internal ladders or ramps, allowing soldiers to ascend. The lower levels were often used to house the men pushing the tower, while the upper levels served as firing platforms for archers and crossbowmen. These ranged attackers could suppress defenders on the battlements, clearing the way for the assault force. Some larger towers even incorporated small siege engines like ballistas or mangonels on their upper decks, providing close-range fire support.

Moving these massive structures was an immense undertaking, requiring significant manpower. They were often pushed by teams of soldiers from within, protected from enemy fire. The ground leading to the castle walls had to be leveled to ensure a smooth approach and prevent the tower from toppling or getting stuck. Due to their immense size and weight, siege towers were almost always constructed on site during the siege itself, disassembling and transporting them was simply not feasible.

Strategic Deployment and Tactical Impact

The primary objective of a siege tower was to enable a massed assault directly onto the walls. Once the tower was pushed against the wall, its drawbridge would be lowered, creating a direct bridge for troops to rush onto the battlements. This eliminated the vulnerability of scaling ladders, where soldiers were exposed and could be easily picked off or knocked down.

Siege towers were formidable psychological weapons. The sight of a massive wooden tower slowly rolling towards their walls could strike fear into the hearts of defenders, signaling an imminent, overwhelming assault. They also allowed for a concentration of attacking force at a specific point on the wall, overwhelming any defenders positioned there.

However, siege towers were not without their weaknesses. They were incredibly vulnerable to fire, despite protective measures. Defenders would often try to set them ablaze with fire arrows, burning oil, or even by attempting to tunnel out and ignite the base. Moats presented a significant obstacle, often requiring them to be filled in before a tower could approach. Furthermore, if the tower became stuck or was destroyed before reaching the wall, it could become a massive obstacle for the attacking army, hindering further efforts.

Despite these vulnerabilities, when successfully deployed, the siege tower could be the decisive factor in breaching even the strongest fortresses. They represented a direct, brutal approach to siege warfare, epitomizing the relentless determination of besieging armies to overcome defensive obstacles.



3. The Battering Ram: The Underminer of Gates and Walls

Unyielding Force: The Simple Yet Devastating Ram

The battering ram is perhaps the most ancient and enduring siege engine, a testament to the power of repeated blunt force. From antiquity through the entire medieval period, its fundamental purpose remained unchanged: to break down gates, splinter wooden doors, and eventually, to crack and collapse stone walls. While seemingly primitive compared to the sophisticated trebuchet, the ram was an indispensable tool, often the first and last resort for gaining entry into a fortified stronghold.

Engineering a Colossus: Design and Mechanics

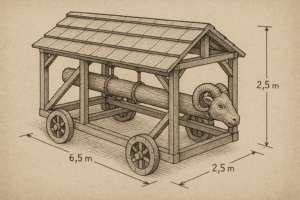

In its most basic form, a battering ram was simply a heavy log, often a tree trunk, wielded by a group of men. However, medieval iterations evolved into far more complex and effective machines. The most common design featured a massive timber beam, sometimes over 60 feet long, suspended by ropes or chains from a sturdy wooden frame. This frame was often mounted on wheels, allowing the ram to be moved into position.

Crucially, the ram’s head was frequently reinforced and shaped for maximum destructive effect. Early versions might have a flat, blunt end, but later designs incorporated a heavy iron or bronze cap, sometimes shaped like a ram’s head (hence the name). This metal cap concentrated the force of the blow onto a smaller area, increasing penetration and damage. The entire framework, including the ram itself, was often enclosed within a protective wooden shelter, known as a “tortoise” or “penthouse.” This roofed structure, often covered with wet animal hides or earth, shielded the operators from projectiles, boiling liquids, and fire dropped from the castle walls.

The operation of a suspended ram was straightforward: a team of men would pull the ram backward, storing momentum, and then release it, allowing the heavy beam to swing forward with immense force into the target. The repeated impact would gradually weaken and eventually shatter wooden gates or crack and crumble stone walls. The wheeled frame allowed the operators to maintain a rhythmic, powerful assault, concentrating blows on a single, vulnerable point.

Strategic Deployment and Tactical Impact

The primary target of a battering ram was almost always the main gate of a fortress. Gates, despite their reinforcement, were often the weakest point in a defensive line, relying on sheer thickness and locking mechanisms. A relentless battering ram could splinter timbers, break hinges, and eventually force entry.

However, rams were also employed against walls, particularly those that were less well-constructed or had suffered prior damage. While slower and less effective against thick masonry than a trebuchet, a persistent ram could still create a breach, especially if the walls were not designed to withstand repeated percussive shocks.

Defending against a battering ram was a high priority for garrisons. Common countermeasures included:

• Dropping Obstacles: Large logs, stones, or even sacks of sawdust could be dropped in front of the ram to absorb its impact or impede its movement.
• Boiling Liquids/Fire: Pouring boiling water, pitch, or oil onto the ram and its operators was a common defense, though often more effective against unprotected rams.
• Grappling Hooks: Attempts were sometimes made to lower grappling hooks or chains from the battlements to snag the ram and hold it immobile.
• Counter-Mining: Defenders might dig counter-tunnels to intercept the ram’s path or to collapse the ground beneath it.

Despite these defenses, the sheer persistence and protected nature of the advanced battering ram made it a fearsome weapon. Its presence signaled a direct, determined assault on the very entry point of the castle, a psychological blow that often preceded the final, desperate struggle for control. While gunpowder artillery eventually superseded the ram for breaching walls, its role as a fundamental tool for gate-crashing remained relevant for centuries.

4. The Ballista: Precision and Penetration

The Giant Crossbow: Striking with Pinpoint Force

The ballista, often described as a “giant crossbow,” was a siege engine renowned for its remarkable precision and ability to launch massive bolts or stones with tremendous force. Unlike the area-effect bombardment of trebuchets and catapults, the ballista excelled at striking specific targets, making it a formidable weapon for neutralizing key defenders, breaching specific weak points in fortifications, or even engaging other siege engines. Its origins trace back to antiquity, particularly with the Greeks and Romans, but it remained a vital component of medieval siege warfare throughout the period.

Engineering a Colossus: Design and Mechanics

At the heart of the ballista’s power lies its torsion springs. Instead of the flexible wooden arms of a traditional bow, a ballista utilized two massive arms inserted into bundles of tightly twisted ropes or sinews (often made from animal gut or hair). As these arms were drawn back, the twisted ropes were further tightened, storing immense torsional energy. When released, this stored energy propelled a large bolt or stone from a central firing channel with incredible velocity.

The design typically featured a robust wooden frame, often mounted on a sturdy base or even wheels for limited maneuverability. A winding mechanism, such as a large winch or windlass, was used to draw back the arms, a process that could be laborious and time-consuming. Once loaded and aimed, a trigger mechanism would release the tension, sending the projectile hurtling towards its target.

Ballistas were capable of firing a variety of projectiles. Their most iconic ammunition was a large, iron-tipped bolt, resembling an oversized crossbow bolt, capable of piercing thick wooden doors, shutters, or even heavily armored individuals. They could also launch stones or lead balls, though typically smaller than those fired by trebuchets, but with greater velocity and flatter trajectories. Some designs even incorporated a sling mechanism to throw multiple smaller projectiles or incendiary devices.

The precision of a ballista allowed for targeted strikes. Unlike the more general bombardment of a trebuchet, a ballista could aim for specific embrasures, murder holes, or even individual defenders on the battlements, making it a sniper rifle of the medieval battlefield.

Strategic Deployment and Tactical Impact

Ballistas were deployed in various strategic roles during a siege. Their primary use was often in anti-personnel roles and counter-battery fire. They could effectively target:

• Defenders on Battlements: Sniping archers, crossbowmen, or commanders on the castle walls, forcing them to take cover or reducing their numbers.
• Gate Mechanisms: Aiming for hinges, locking mechanisms, or portcullis chains to weaken the gate’s integrity.
• Enemy Siege Engines: Engaging other siege engines, such as opposing ballistas or smaller catapults, to neutralize their threat.
• Siege Towers and Rams: Attempting to damage vulnerable points of approaching siege towers or ram shelters.

Due to their more direct trajectory compared to the arcing shot of a trebuchet, ballistas were often positioned closer to the walls. They were typically operated by a smaller crew than a trebuchet, making them more nimble, though still requiring considerable effort to set up and reload.

One of the key advantages of the ballista was its ability to provide suppressive fire, making it dangerous for defenders to expose themselves. The high velocity of its projectiles meant they could punch through many forms of light medieval armor, and even some thicker wooden defenses.

While the ballista’s range was generally shorter than that of a large trebuchet, its precision and flat trajectory made it a valuable asset for direct engagement and targeting. Its destructive power, focused on specific points, complemented the area-effect bombardment of other siege weapons, making it an integral part of a comprehensive medieval siege arsenal. As gunpowder began to spread, cannons gradually replaced ballistas, offering even greater destructive power and ease of operation. However, for centuries, the ballista stood as a testament to the effectiveness of precise mechanical force in warfare.

5. Sapping (Mining): The Unseen Destroyer Beneath the Walls

The Silent Threat: Undermining the Foundations of Defense

While not a “machine” in the traditional sense, sapping, or mining, was one of the most destructive and insidious methods of siege warfare in the Middle Ages. It involved digging tunnels beneath the foundations of a castle’s walls or towers with the express purpose of causing them to collapse. This unseen threat, operating beneath the very ground defenders walked on, was often more feared than any visible siege engine, as its success meant a sudden, catastrophic breach.

Engineering a Colossus: Design and Mechanics

Sapping was a highly specialized and dangerous undertaking, requiring skilled engineers and laborers known as “sappers” or “miners.” The process began with digging a tunnel, often starting from a protected position or a covered trench (a “sap” in the literal sense, from which the word “undermine” originates). These tunnels would be carefully excavated, typically shored up with timber supports to prevent collapse as the miners worked.

The tunnels would extend beneath the target section of the wall or tower. Once directly beneath the foundation, the miners would expand the tunnel into a larger chamber, often known as a “mine chamber.” Within this chamber, they would meticulously remove the supporting earth and rock beneath the wall’s foundations. As they removed material, they would replace it with temporary wooden props or shoring.

The final, devastating step was the “firing” of the mine. Once the chamber was complete and filled with wooden props, the sappers would ignite the wooden supports. As the timber burned away, the ground above would lose its support, and the immense weight of the wall or tower would cause it to collapse into the void. This created a massive breach, allowing the attacking army to pour into the fortress. Sometimes, to hasten the collapse and amplify the effect, combustible materials like pitch or animal fat would be added to the wooden props to intensify the fire.

Sapping was incredibly dangerous work. Miners faced the risk of tunnel collapse, enemy counter-mining (where defenders dug their own tunnels to intercept and fight the attackers underground), or defensive measures such as pouring boiling water or smoke down into the tunnels.

Strategic Deployment and Tactical Impact

Sapping was a high-stakes, high-reward strategy. Its primary objective was to create an irreparable breach in the seemingly impregnable stone walls. Unlike repeated battering from rams or trebuchets, which might take days or weeks to create a visible crack, a successful mine would cause a sudden, catastrophic collapse, often with little warning to the defenders.

The psychological impact of sapping was immense. Defenders constantly feared that their walls might crumble at any moment, leading to a profound sense of insecurity and demoralization. It forced garrisons to employ counter-mining tactics, which diverted valuable resources and manpower from defending the walls above ground. Listeners might be employed to detect the sounds of digging, and counter-tunnels would be dug to intercept the attackers, often leading to brutal underground skirmishes in cramped, dark, and airless conditions.

Sapping was particularly effective against castles built on softer ground or those with shallow foundations. However, it was less viable against fortifications built on solid rock or those with very deep and strong foundations. The time and effort required for sapping meant it was often employed in prolonged sieges where other methods had failed, or as a surprise element to complement a surface assault.

The advent of gunpowder later revolutionized mining, as explosives could be used to create even more devastating and rapid collapses. However, the fundamental concept of undermining fortifications remained a crucial, albeit dangerous, aspect of siege warfare throughout the medieval period, proving that sometimes, the most effective destruction came from below.

The evolution of these five devastating siege engines fundamentally altered medieval warfare. They transformed the balance of power between attackers and defenders, constantly pushing the boundaries of engineering and military strategy. While now relics of a bygone era, their destructive ingenuity continues to fascinate, reminding us of the relentless human drive to overcome obstacles, even those built of the strongest stone.
